Agusta - AW119Kx

MAX CRUISE SPEED (@5,000 FT, ISA, MGW, MCP)

241 km/h 130 kTAS

MAX RANGE (@5,000 FT, ISA, MGW)*

945 km 510 nm*

Capacity

Crew 1-2 Passenger up to 6

*With auxiliary fuel tanks - No reserve

The AW119Kx is the fastest and most powerful single-engine helicopter with a unique combination of cost-effectiveness, high speed and flexibility. With its spacious, comfortable and elegantly appointed cabin, tailored to customer requirements, the AW119Kx offers more room than any other single-engine helicopter on the market, and can comfortably accommodate up to six passengers, who benefit from a large, separate baggage compartment.

OUR FEATURES

Outstanding technology and safety

The AW119Kx allies exceptional on-board technology with excellent flying qualities and best-in-class levels of safety typical of light twin category helicopters. The Garmin G1000NXi VFR glass cockpit enhances situational awareness. The Genesys Aerosystems IFR glass cockpit is available as an alternative and allows pilots to operate safely in low visibility and challenging weather.

OUR FEATURES

Exceptional cabin flexibility

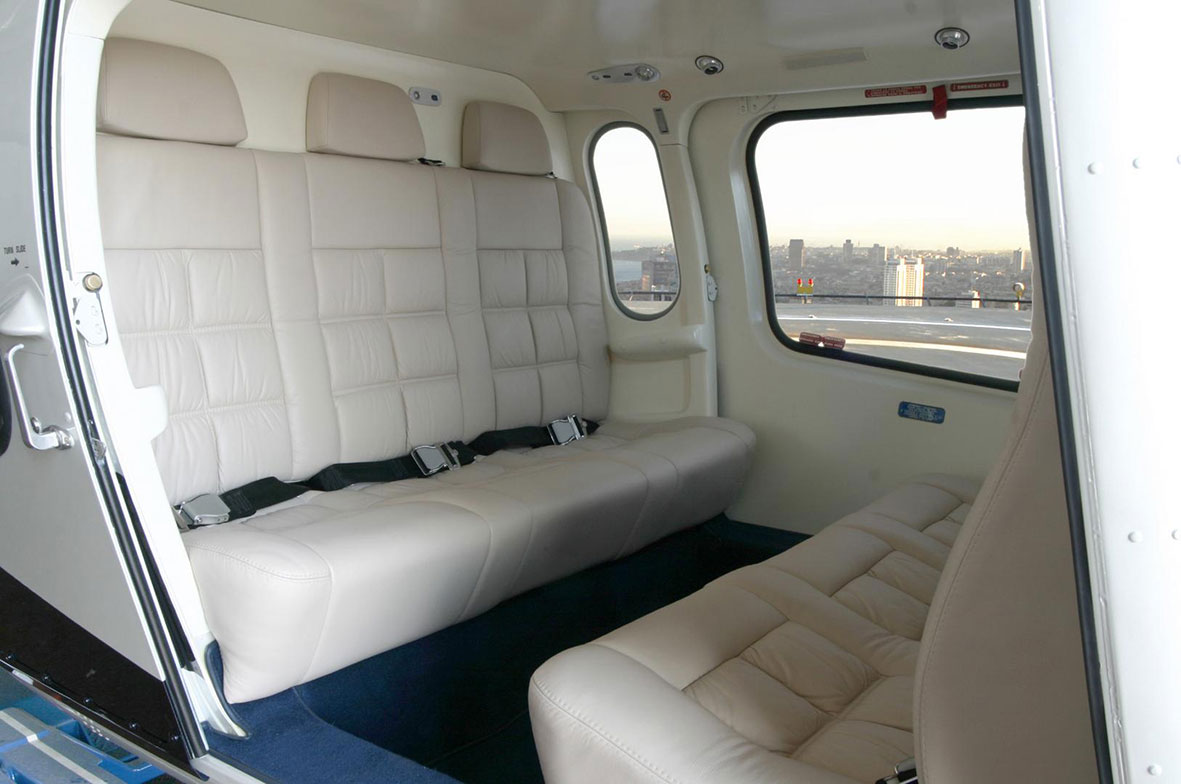

The AW119Kx offers a cabin that is designed to unique customer specifications, guaranteeing comfort and elegance. The AW119Kx features class-leading interior space and can carry up to six passengers. A large separate baggage compartment which is up to 2.3 m (7 ft 6 in) in length maximises available space in the cabin.

The layout that suits you best

Vip Interior

6 passengers

Technical data

WEIGHTS (MGW) Internal loads

2,850 kg - 6,283 lb

WEIGHTS (MGW) External loads

3,150 kg - 6,945 lb

POWERPLANT

1 x Pratt & Whitney Canada PT6B-37A

OVERALL LENGTH*

12.92 m 42 ft 05 in *Rotors turning

OVERALL HEIGHT

3.60 m - 11 ft 10 in

ROTOR DIAMETER

10.83 m - 35 ft 06 in

HIGE (ISA, MGW, TOP)

3,353 m - 11,000 ft

HOGE (ISA, MGW, TOP)

2,225 m - 7,300 ft

MAXIMUM ENDURANCE (@5,000 ft, ISA, MGW)*

5 hr 16 min *WITH AUXILIARY FUEL TANKS - NO RESERVE
